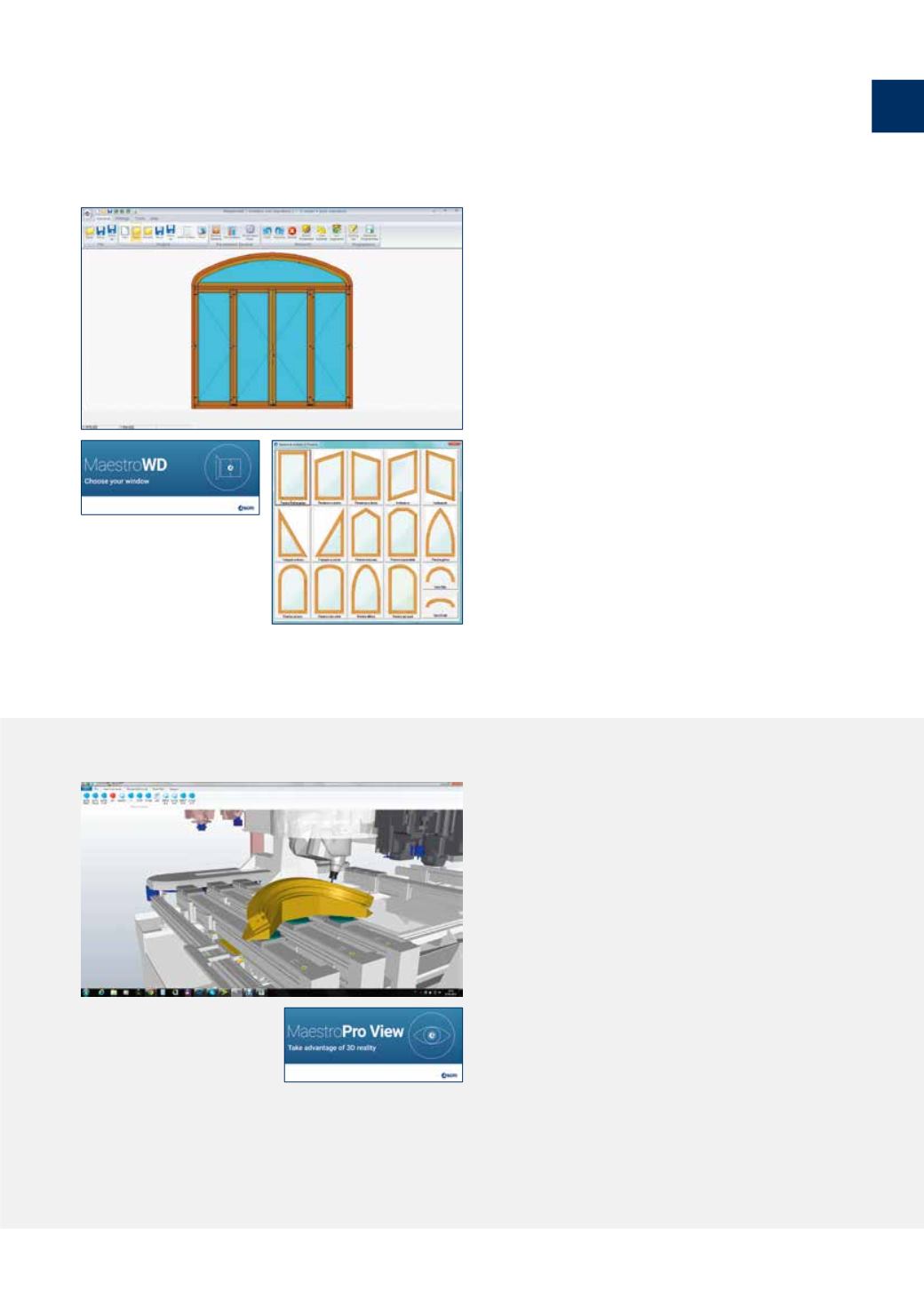

MAESTRO PRO VIEW
UNIQUE 3D DISPLAY
Maestro Pro View is a 3D simulator that allows
users access to a three dimensional model of their
machine in their office and view the operations
that will be carried out during the production in
advance on their PC.
• Real representation of the workpiece being
machined and the machine parts
• Real representation of the material removed
during machining
• Generation of collision control reports
• Prevention of any possible programming errors
• Generation of work cycle execution times reports.
Calculation of the production costs and greater
production efficiency.
MAESTRO WD
UNIQUE IN DESIGNING
DOORS AND WINDOWS
The application included in the Xilog Maestro
suite is designed for planning and programming
each single part of linear and arc-shaped windows,
doors and shutters. The user starts by defining
the wall opening and selecting the model to be
produced, then the software generates all the
individual parts to be produced in the machine,
with a state of the art graphic editor.
Maestro WD adds planning and programming to
the functions used to manage the worktables and
the macro-machining operations for door and
window frames.
Door and window frames of any dimension and
shape with the maximum ease and execution
speed to achieve a customised product.
