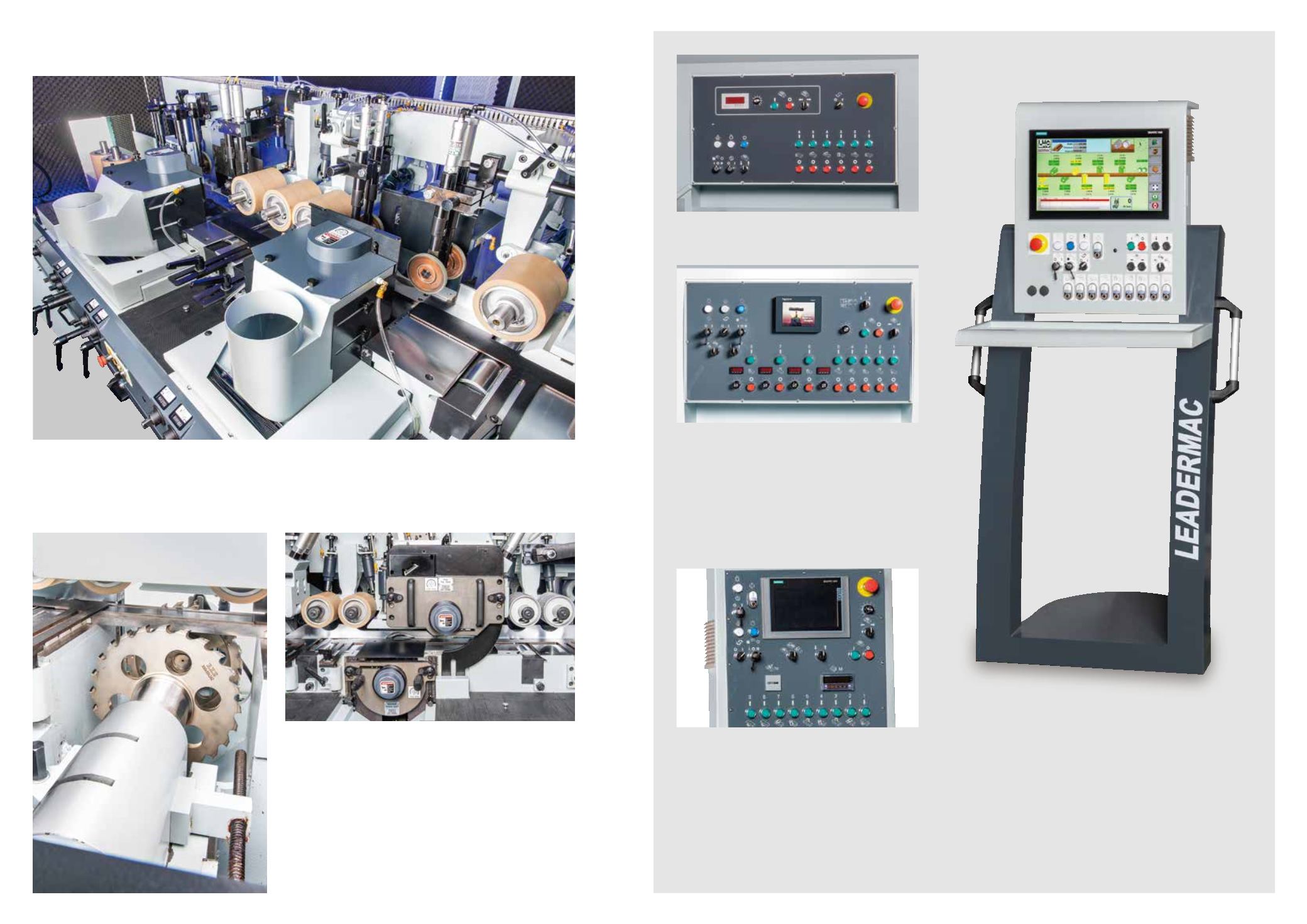

12-13 / 16
EASYSET
CONTROLLER (OPT.)
Touch Screen Control
• 5.7” HMI (Memory 200 sets)
• Automatic machine quick setup
• Easy and powerful functionality
• Workpiece settings on left and top axes as desired
• The width and thickness setting can be easily set
using the programmable controller
• The desired values for thickness are displayed on
and LED readout
CONTROLLER
The speed is VFD Inverter controlled, and all electrical
components meet CE, UL & CSA standards.
PROSET
CONTROLLER (OPT.)
• 19” panel PC
• Product library (1000 sets)
• Knife library (10,000 sets)
• Automatic machine quick setup
• Easy and powerful functionality
• Workpiece settings on any axis as desired
• The width and thickness settings can be easily set using the
programmable controller
• All axes are equipped with ballscrews and rotary encoders for
feedback position control, providing high positioning accuracy
and better cutting quality
• The desired values for width and thickness can be conveniently
pre-set and are displayed on an LED readout
SMARTSET
CONTROLLER(OPT.)
Touch Screen Control.
• 9" HMI (Memory 300 sets)
• Automatic machine quick setup
• Easy and powerful functionality
• Setworks on any axis as desired
• The Motorized Axes: derived by inverter,
transmitted by ball screw, feedback by encoder
• The desired values for radial and axial are
displayed on HMI.
11 / 12
HYPERMAC series
LEADERMAC
SLICING MECHANISM (OPT.)
• The machine is equipped with two sliding units. One for scoring saw and one for
main saw, providing better slicing quality.
• The last vertical spindle can be mounted with sliding sawblades. It permits direct
slicing once wood moulding is accomplished, greatly increasing efficiency.
CLAMPING SYSTEM (OPT.)
Utilizing housing bearings, the reliable hydro-clamping system
ensures consistent quality across the entire workpiece. The
unit performs admirably even during high-speed continuous
operation. The spindles can be adjusted axially even if the
housing bearings are locked.
TRIMMING SAWBLADE (OPT.)
The 7th and 8th spindles can be equipped with a trimming
sawblade for trimming the wood side after moulding. This
increases the wood gluing effect in wood composing operation.
Quality come from Excellent equipment of production.
