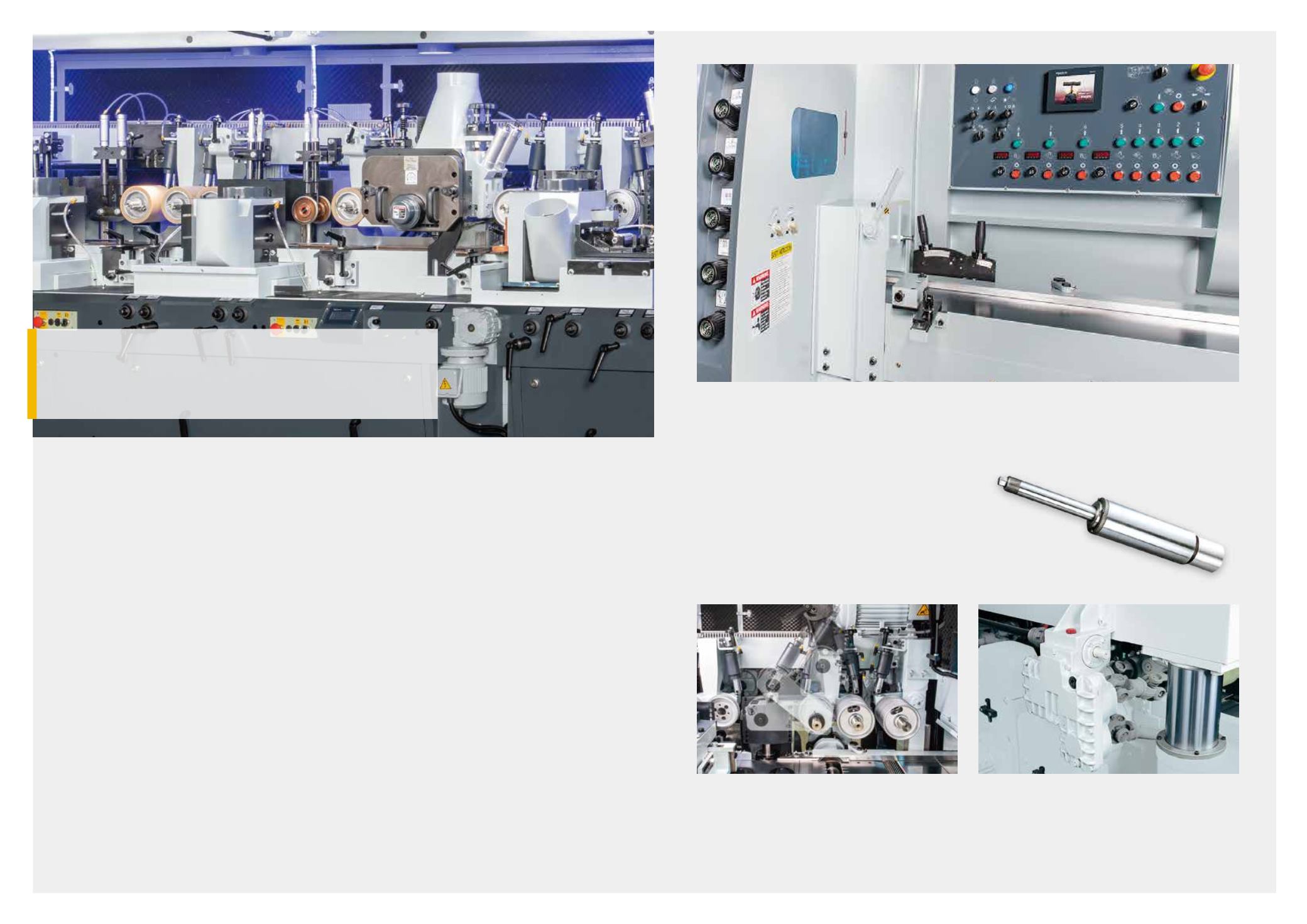

HYPERMAC series
LEADERMAC
FEED TABLE
The entire Cast Iron – Chromed Infeed table is normalization heat treated for maximum stability.
Infeed Table & Fence adjustment is quickly accomplished by means of a quick-setting levers.
Speed up Your Moulding Operation with the Latest
Technological Breakthroughs from LEADERMAC
World Class Moulding Solutions
OUTSTANDING FEATURES:
• Feed Speeds of up to 36 mpm(120fpm) are standard (higher-optional)
• Adjustment of each spindle can be easily performed using the front of the machine adjustment setup.
• Separate adjustment of the vertical spindles and the support feed tables allow the feed tables to be
positioned extremely close to the side cutterheads to provide added cutting stability.
• The full Heavy Gauge Steel Sound Insulated Safety Enclosure serves as a chip guard and helps to
reduce noise and has strobe free lighting
• Each spindle is driven by an individual motor for powerful milling and easy control.
• Pneumatic pressure of the feed rollers can be easily set to provide an outstanding feeding effect – 3
sections – each with individual Adjustment – ie. Infeed, Midfeed & Outfeed Top Rolls. Pressure
Controls & Pressure Gauges mounted on outside of the enclosure post.
• Table Surfaces, Guides, Chip Breakers & Pressure Plates are hard-chrome plated for maximum wear
resistance.
• All manually adjusted turning parts are housed in dry bearings for oil-free lubrication.
• Automatic lubricator is provided to supply oil to the table sections for running parts.
• Extra Heavy One-piece, Cast Iron or steel weldment Machine Frame is specially heat treated for maxi-
mum stability and rigidity by standard configuration.
• Digital readouts for the Chip Breaker Shoes of top spindle(s).
• Split Sectional Chip Breaker Ass’y in front of top spindle(s).
• The powered outfeed rolls provide stable and smooth workpiece outfeed even for especially thin or
smooth materials. The rolls remain perfectly parallel even after long-term use.
LIFTABLE AUXILIARY FEED ROLLER
The mechanism provides added smoothness for short
workpiece feeding. The auxiliary feed rollers are power
driven for effortless feeding effect, and are liftable for
convenient cutter change or setup.
HEAVY DUTY GEARBOXES
The feed rollers are driven through a combination of
Extra Heavy Universal Shafts and Gearboxes, ensuring no
loss of power transmission. A smooth feeding effect is
assured. The heavy duty gearboxes have no backlash and
provides powerful and accurate feeding performance.
HIGH PRECISION SPINDLES
All spindles are precision constructed and specially heat treated to
provide maximum cutting stability and permanent accuracy.
4 Super Precision Bearings per Spindle provide the best most accurate spindles
available.They are water and dust-proof. Standard spindle speed is 6,000 RPM
and 7,200 or 8,000 RPM are optional.
HYDRO-LOC QUICK CLAMPING OUTBOARD SUPPORT SYSTEM (OPT.)
Utilizing a precision outboard bearing, the reliable hydro-clamping system ensures
consistent quality across the entire workpiece. The unit performs admirably even
during high-speed continuous operation. The spindles can be adjusted axially
even if the housing bearings are locked. Used on Wider &/or Jointed Machines
